3D Structural Analysis
Build, validate, analyze, inspect, and export structural models through a browser-based 3D FEA workspace — with model validation, result views, and normalized result artifacts in one place.
- Best for
- Structural engineers building and reviewing supported frame and plate analysis models.
- Outcome
- A validated analysis model with reviewable 3D result views and normalized FEA workspace export artifacts.
- Runs in
- Browser workspace - cloud-ready
- Requirements
- Runs in the AEIS browser workspace through the configured Python FEA analysis service.
Evidence surface
Inspect the working evidence.

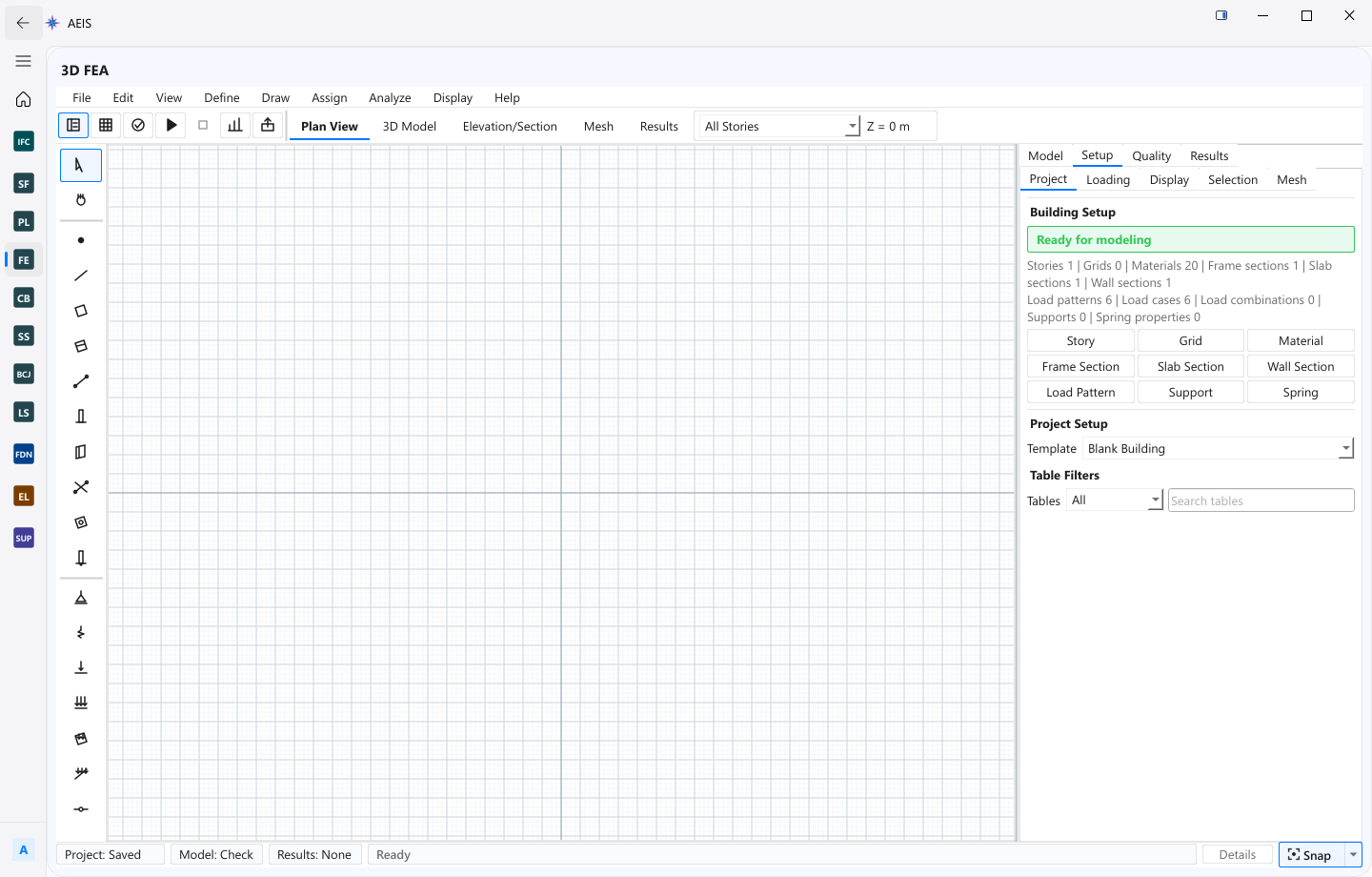

Review the product capture, then use the checklist for what a qualified engineer can verify before handoff.
- Model validation before analysis
- 3D model and result views
- Result database artifact
- Normalized workspace export
The workspace covers the currently implemented model objects and analysis results; engineers must verify idealisation, restraints, loading, stability, and downstream design use.
Product details
Inputs, steps, and deliverables.
Build and review supported frame and plate models with validation, 3D results, and normalized exports.
Inputs
- Structural model definitions for supported objects
- Materials, sections, loads, and supports
- Analysis settings for the run
- Validation criteria before analysis
Steps
- Define model objects, materials, and sections
- Apply loads, supports, and analysis settings
- Validate the model and run analysis
- Review 3D results and export normalized artifacts
Outputs
- Model validation summary
- Analysis result database and views
- Normalized FEA workspace export
- Inspectable result state for engineer review
Value and use
Why teams use 3D Structural Analysis.
What this product is for in practice, and the engineering situations teams bring into AEIS first.
Value
- Build and validate supported models in the browser
- Inspect 3D results against the same model definition
- Export normalized result artifacts for the engineering record
Use cases
- Build a supported frame model with loads and restraints
- Validate model completeness before analysis
- Inspect plate or frame results in 3D views
- Export a normalized result package for design follow-on
FAQ
Before you evaluate this product.
Common questions about 3D Structural Analysis, execution requirements, and engineer responsibility.
Does 3D FEA replace ETABS?
No. 3D FEA is a browser analysis product for supported model objects. ETABS stages run through the Windows worker where configured.
What must the engineer still verify?
Idealisation, restraints, loading, stability, and any downstream design use of the results remain engineer responsibilities.
What artifacts leave the workspace?
A model validation summary, analysis result database and views, and a normalized FEA workspace export.
Evaluate 3D Structural Analysis on your engineering case.
Describe the 3d structural analysis inputs and required deliverable. AEIS will confirm product fit, execution requirements, and the engineer-owned acceptance point.
