Reinforced Concrete Beam Design
Design reinforced-concrete beams with beam input, batch cases, validation feedback, section preview, and exports under the implemented HKCOP beam scope.
- Best for
- Structural engineers designing reinforced-concrete beams and reviewing batch cases.
- Outcome
- Validated beam cases with visible governing checks, section preview, and exportable design evidence.
- Runs in
- Browser workspace - cloud-ready
- Requirements
- Runs through the AEIS technical design API using the supported reinforced-concrete beam scope.
Evidence surface

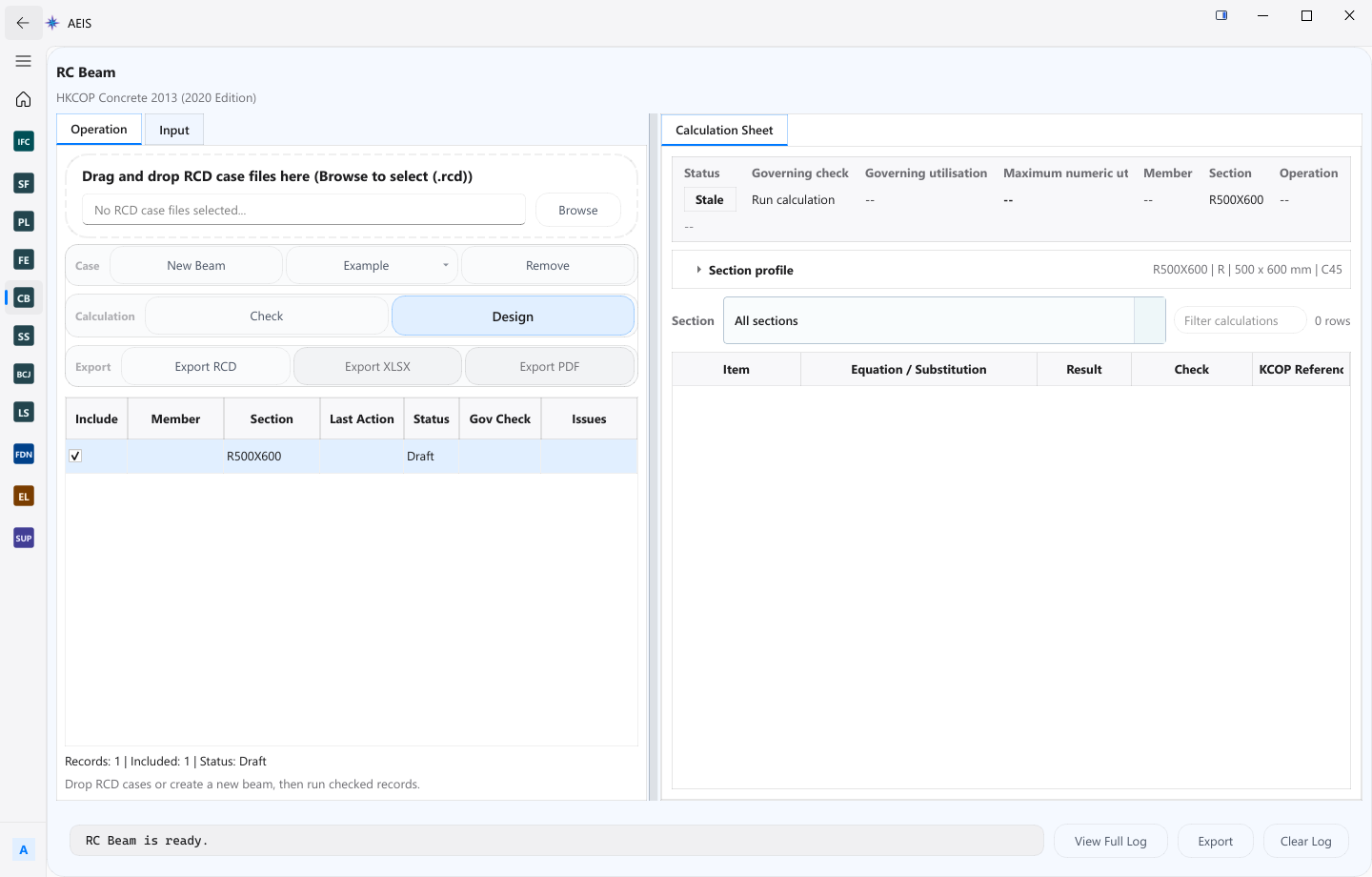

Inspect the working evidence.
Review the product capture, then use the checklist for what a qualified engineer can verify before handoff.
- Scoped HKCOP beam checks
- Batch case handling
- Section preview with governing results
- Exportable design evidence
Checks are limited to the supported reinforced-concrete beam scope; engineers verify inputs, governing actions, detailing, and final design acceptance.
Product details
Inputs, steps, and deliverables.
Design reinforced concrete beams with scoped HKCOP checks, batch cases, and reviewable evidence.
Inputs
- Beam geometry and span data
- Materials and reinforcement assumptions
- Design actions or batch cases
- Check settings for the supported beam scope
Steps
- Define a beam or batch of cases
- Enter materials, reinforcement, and design actions
- Validate inputs and run scoped checks
- Review section preview, governing results, and exports
Outputs
- Validation feedback on inputs and cases
- Section preview and governing checks
- Design exports for the accepted case set
- Batch results for multi-beam review
Value and use
Why teams use Reinforced Concrete Beam Design.
What this product is for in practice, and the engineering situations teams bring into AEIS first.
Value
- Run scoped HKCOP beam checks with validation feedback
- Handle single beams and batch cases in one product
- Export design evidence tied to the same inputs
Use cases
- Design a continuous beam with governing actions
- Batch-check a floor beam schedule
- Validate reinforcement assumptions before export
- Produce design evidence for internal review
FAQ
Before you evaluate this product.
Common questions about Reinforced Concrete Beam Design, execution requirements, and engineer responsibility.
Which code scope does RC Beam implement?
RC Beam implements the supported HKCOP reinforced-concrete beam scope visible in the module. Detailing and topics outside that scope stay with the engineer.
Can I run batch cases?
Yes. Batch cases are supported with validation feedback and governing checks per case.
What does the engineer still own?
Inputs, governing actions, detailing, and final design acceptance remain engineer responsibilities.
Evaluate Reinforced Concrete Beam Design on your engineering case.
Describe the reinforced concrete beam design inputs and required deliverable. AEIS will confirm product fit, execution requirements, and the engineer-owned acceptance point.
