Reinforced Concrete Joint Design
Design and check reinforced-concrete beam-column joint cases with validation, scoped HKCOP joint rules, batch checking, and exportable design evidence.
- Best for
- Structural engineers checking reinforced-concrete beam-column joint cases.
- Outcome
- Validated joint cases with scoped HKCOP checks, batch results, and exportable design evidence.
- Runs in
- Browser workspace - cloud-ready
- Requirements
- Runs through the AEIS technical design API using the supported beam-column joint scope.

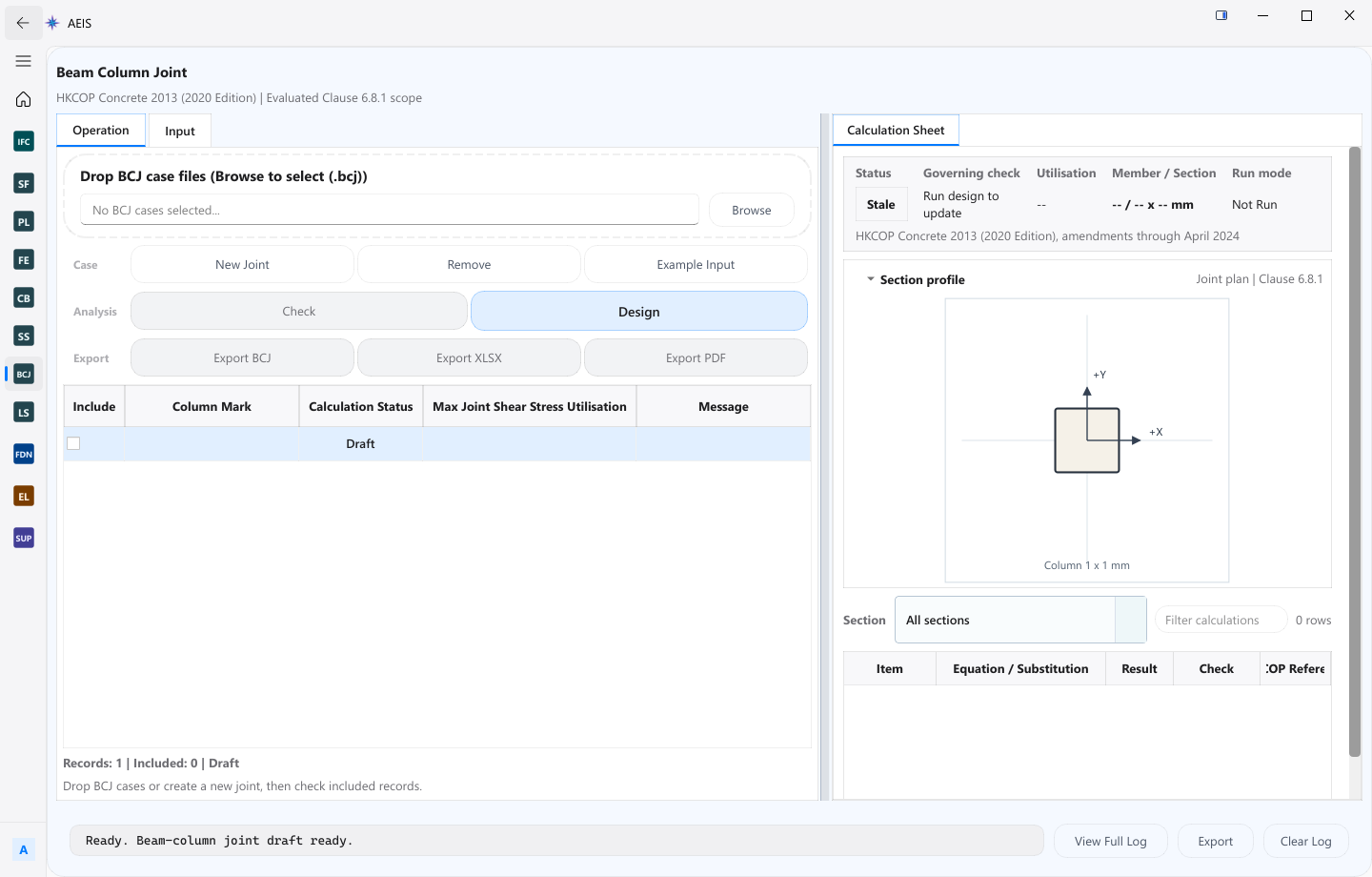

Evidence surface
Inspect the working evidence.
Review the product capture, then use the checklist for what a qualified engineer can verify before handoff.
- Scoped HKCOP joint checks
- Input validation before design
- Batch joint checking
- Exportable joint design evidence
Checks are limited to the supported joint geometry and code rules; engineers verify modelling, reinforcement feasibility, load transfer, and final detailing.
Product details
Inputs, steps, and deliverables.
Check reinforced concrete beam-column joints with validation, scoped HKCOP rules, and batch exports.
Inputs
- Joint geometry for the supported case
- Member and reinforcement data
- Design actions or batch cases
- Check settings for the joint scope
Steps
- Define joint geometry and member data
- Enter reinforcement and design actions
- Validate inputs and run scoped joint checks
- Review batch results and export design evidence
Outputs
- Validation findings for joint inputs
- Scoped joint check results
- Batch results across joint cases
- Exportable design evidence
Value and use
Why teams use Reinforced Concrete Joint Design.
What this product is for in practice, and the engineering situations teams bring into AEIS first.
Value
- Apply scoped HKCOP joint rules with validation first
- Batch-check joint cases in one product
- Export design evidence tied to joint inputs
Use cases
- Check a typical interior or exterior joint case
- Batch-review joints on a storey frame
- Validate reinforcement feasibility before detailing
- Export joint check evidence for design records
FAQ
Before you evaluate this product.
Common questions about Reinforced Concrete Joint Design, execution requirements, and engineer responsibility.
Which code scope does Beam Column Joint implement?
The module implements the supported joint geometry and HKCOP joint rules visible in the workbench. Modelling and detailing outside that scope stay with the engineer.
Can joints be checked in batch?
Yes. Batch checking is supported with validation findings and scoped results per case.
What remains engineer-owned?
Modelling assumptions, reinforcement feasibility, load transfer, and final detailing require engineer verification and acceptance.
Evaluate Reinforced Concrete Joint Design on your engineering case.
Describe the reinforced concrete joint design inputs and required deliverable. AEIS will confirm product fit, execution requirements, and the engineer-owned acceptance point.
